The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for previews and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Features:
- Support input max resolution 4K@30Hz;
- Support output max resolution 1080P@60Hz;
- Support 24/30/36bit deep color;
- Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);
- Support most acquisition software, such as VLC、OBS 、Amcap, etc;
- Support Windows、Android and MacOS;
- Conform to USB Video and UVC standard;
- Conform to USB Audio UAC standard;
- Support uncompressed(YUY2 1080P@60Hz) acquisition (USB3.0);
- Video Capture support Type-c 3.0 and USB 3.0 2-in-1 interface;
- No need external power supply, compact and portable.
Specifications:
- HDMI resolution ……....……………………........................Max input can be 4K
- Support video format ……………..……………..…..............24/30/36bit Deep color
- Video output format ……………..........………………..........YUY2，MJPEG
- Video output resolution ……………………................Max output can be 1080P
- Support audio format ………………..…................. L-PCM
- Input cable distance .…...……………......……..........≤15m,AWG26 HDMI standard cable
- Max working current ……………………..................... 0.2A/5VDC
- Operating Temperature range …………………………....… (-10 to +55℃)
- Dimension (L x W x H) ………………...............……….. 11x23x240 (mm)
- Weight …….…..……………………………………….………………... 27g

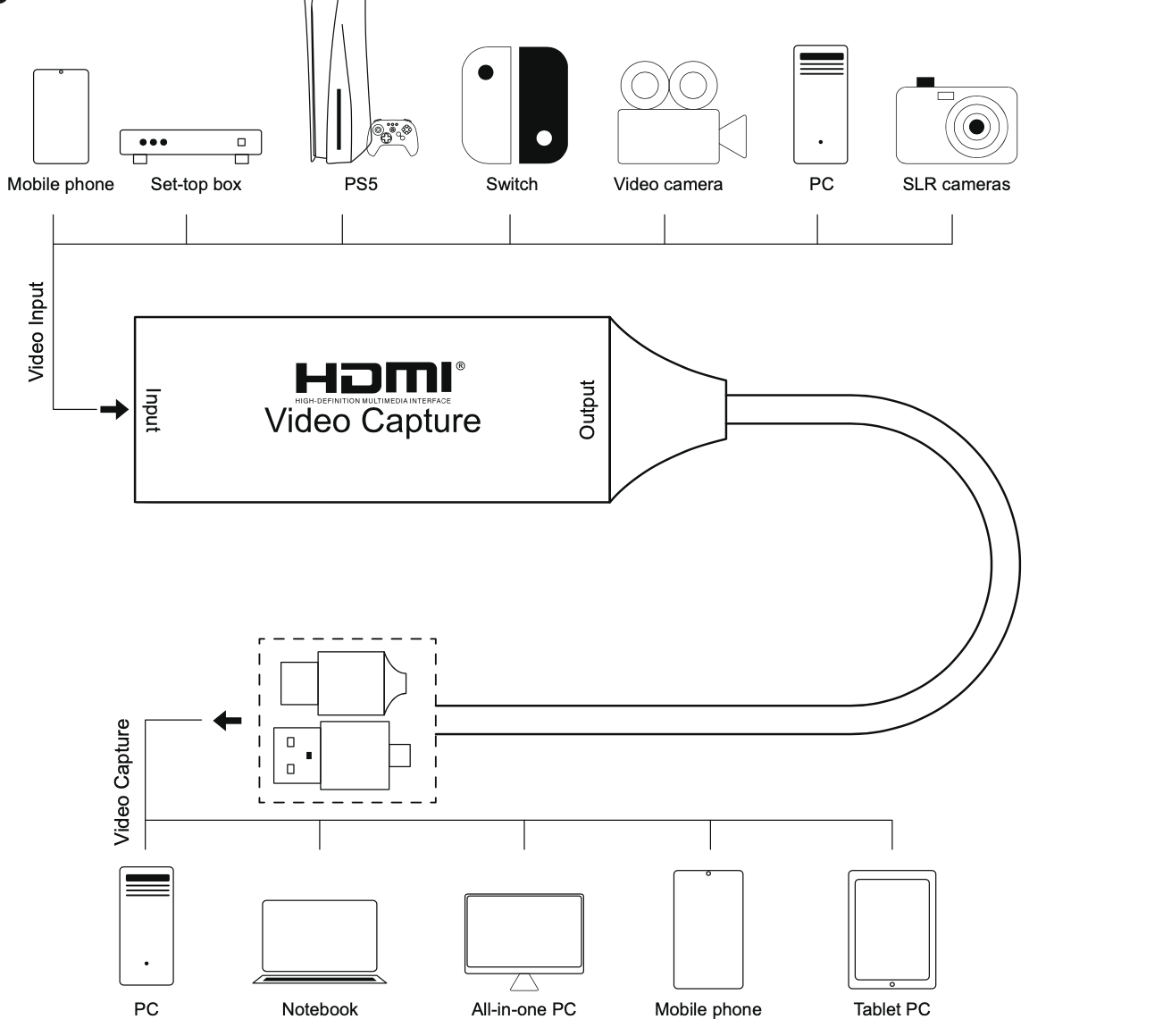

Application diagrams:
